There is no universal advantage to either vulcanized silicone parts or to co-injected silicone parts. Vulcanized silicone can be very suitable to simpler, durable, and cost effective parts and multi-material, overmolded or functionally integrated components can be best achieved using co-injected silicone. The co-injection is wrongly perceived by many buyers as being more sophisticated than vulcanization. Practically, the correct decision depends on the particular engineering and manufacturing needs but not the presumptions about modernity.
The optimal process is one that balances the part structure, functional requirements, the economics of tooling, and scalability of production. I have witnessed successful and unsuccessful projects in years as a senior process engineer whose expertise is to streamline silicone manufacturing lines. This guide uncovers the actual distinctions to assist you in making an informed choice.
Key Differences Between Vulcanized and Co-Injected Silicone Parts
Vulcanized silicone and co-injected silicone components vary in their basic characteristics of the curing of the material, filling of the mold and what the end product can accomplish. These differences need to be learned at an early stage to avoid expensive redesigns in the future.
Vulcanized silicone components are usually based on compression molding of High Consistency Rubber (HCR) or High Temperature Vulcanizing (HTV) silicone. Operators insert pre-compresent material into an open mold and clamp it under heat and pressure and leave it to cross-link the chains of polymer by the action of peroxide or platinum. The outcome is a hard, flexible component that has acceptable mechanical characteristics.
Co-injected silicone parts, in contrast, make use of Liquid Silicone Rubber (LSR) in Multi-shot injection or overmolding. The liquid is forced to fill a closed mold – usually sequentially with a rigid material such as plastic or metal – forming either a single or two-cycle strong chemical or mechanical bond. This allows complicated hybrid designs that cannot be made using single-material compression.
The following is a straight up comparison:
| Factor | Vulcanized Silicone Parts | Co-Injected Silicone Parts |
| Process Type | Compression molding | Multi-material co-injection / LSR overmolding |
| Structural Complexity | Moderate | High |
| Bonding Capability | Limited (mostly mechanical) | Strong multi-material bonding |
| Tooling Complexity | Lower | Higher |
| Production Cost | Lower to medium | Medium to higher |
| Typical Applications | Seals, gaskets, buttons, protective sleeves | Overmolded electronics, wearables, hybrid assemblies |
All the decisions in your project are motivated by these differences.
When Vulcanized Silicone Parts Are the Better Choice
Vulcanized silicone components are shiny when simplicity, repeatability and cost control is the most important. Compression vulcanization can provide the most effective mix of performance and economics in simple geometries that do not have to be integrated with other materials.
Vulcanized components are often selected by engineers in mass production of simple functional components. The process can withstand slight variations in material charge with constant durometer and elasticity among batches. Tooling costs remain low as the molds do not require as much precision as injection systems and the cycle time, albeit slower per part, scales well with a manual or semi-automated system.
Think of the following typical cases:
| Application | Why Vulcanization Works Well |
| Silicone gaskets | Excellent compression set and long-term sealing |
| Keypads and buttons | Precise feel with durable surface texture |
| Protective sleeves | Cost-efficient thick walls and simple shapes |
| Sealing components | Reliable elasticity under repeated stress |
In practice, at high production levels, above 5,00010,000 parts, and with design consisting of a single-material vulcanized silicone component, it is common to find that a lower total landed cost can be attained without loss of durability.
When Co-Injected Silicone Parts Offer Advantages
The co-injected silicone products provide unequivocal victories when your design requires functional integration. A capability to directly bond soft silicone to rigid substrates in a single step eliminates secondary assembly, tolerances stack-up and enhances overall product reliability.
The process is especially useful with applications where an ergonomic surface is needed, waterproof seals around electronics, or a soft touch grip on hard housings. The liquid character of LSR is poured into complicated structures and forms chemical bonds which are much stronger in withstanding environmental pressures than adhesives or mechanical fasteners.
| Use Case | Co-Injection Benefit |
| Electronics overmolds | Integrated sealing against dust and moisture |
| Wearable products | Soft-touch comfort with structural rigidity |
| Automotive components | Multi-material performance under vibration |
| Functional assemblies | Reduced assembly steps and improved quality |
Gluing or ultrasonic welding are replaced by co-injection projects and record a reduction in defects with fewer labor hours in assembly.
Cost and Tooling Considerations

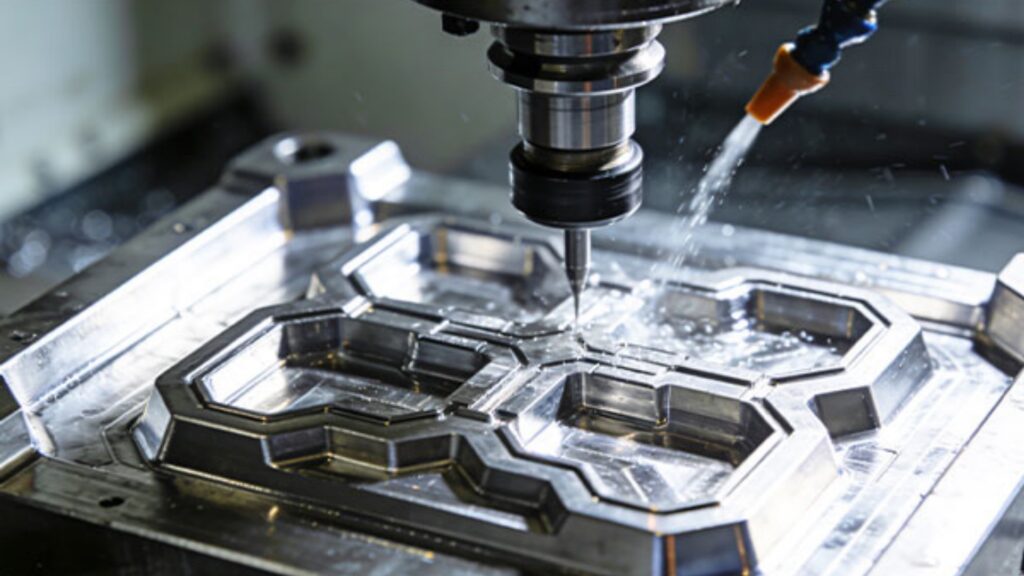

Technical requirements are usually fulfilled and the winner is decided often by tooling and the economics of the unit. The simpler, less expensive molds typically needed in vulcanized processes (often aluminum or simple steel) make them appealing to prototyping and small volumes. Co-injection requires quality steel tools that can work with sequential shots and minimal shut-offs, increasing initial investment.
The image however changes with volume. As the quantities become larger the quicker cycles and the less labor of co-injection often give better ROI. Operating conditions also play a significant role: parts vulcanized can require additional trimming or additional post-curing, whereas well-designed co-injected parts can come almost finished.
| Cost Factor | Vulcanized | Co-Injected |
| Tooling Investment | Lower | Higher |
| Part Cost (medium volume) | Lower | Higher |
| Assembly Labor | Higher (sometimes) | Lower |
| Volume Efficiency | Strong for simple parts | Strong at scale |
| Design Flexibility ROI | Moderate | High |
An intelligent consideration of anticipated volume per annum and total cost of ownership over a five-year period nearly always makes the better way clear.
Performance Considerations: Bonding, Durability and Precision
Performance is not just about the material specifications but about the behavior of the part in actual service. Vulcanized silicone components are great standalone, compression set, and environmental resistant. They are good at sealing and vibration-damping applications where simplicity is paramount.
Co-injection components are best where bonding integrity is important, and functional integration is needed. Chemical bonds between LSR and substrates are properly engineered to resist delamination during thermal cycling or exposure to chemicals. Dimensional tolerances are also reduced with injection processes, usually by a steady-state of approximately ±0.1-0.2 mm.
| Performance Factor | Better Fit |
| Simplicity + durability | Vulcanized |
| Multi-material bonding | Co-injected |
| Lower tolerance risk | Vulcanized |
| Functional integration | Co-injected |
Lifecycle testing is still required. A component that might be cheaper in theory might be more costly, in case of field failures as a result of inappropriate process selection.
How to Choose the Right Process for Your Project
Begin with a well-organised decision framework, not defaulting to the process that your current supplier likes best. Assess part geometry: plain shapes are better than complicated ones with vulcanization, complicated ones with co-injection.
Then, plot functional requirements–is the piece required to be permanently bonded to plastic or metal? Next look at volume expectations, budget limits, secondary assembly requirements, and, most importantly, the real technical richness in both processes of your supplier.
| Project Priority | Recommended Process |
| Lowest tooling cost | Vulcanized |
| Multi-material integration | Co-injected |
| High-volume simple parts | Vulcanized |
| Complex functional parts | Co-injected |
| Faster assembly reduction | Co-injected |
To most OEMs and product developers, the best way forward is to engage in consultation early as regards to custom silicone parts manufacturing capabilities. The most prevalent pitfalls are avoided by aligning design intent and proven process expertise.
Common Mistakes When Comparing These Two Processes
Even seasoned teams falter in the process of trying to assess vulcanized versus co-injected alternatives. The most common are the following errors:
- It is always better to suppose that co-injection is better since it is more modern.
- Selecting tools without modeling the complete lifecycle costs based only on cost.
- Neglects implications of downstream assembly and quality risks.
- Not checking the actual expertise of the supplier and the capabilities of the machines.
- Choosing the process without completely validating the part design with feedback of DFM.
Most of these problems are avoided by a speedy cross-functional audit, engineering, sourcing, and quality.
Conclusion — The Best Process Depends on Project Priorities
No universal winner exists between vulcanized and co-injected silicone parts. It is successful by matching performance needs, manufacturability and economics with your particular project realities.
Well-crafted engineering decisions will always beat blanket assumptions on which process is better. When you meticulously balance the manufacturing technique to geometry, function, volume, and long-term demands, you will have dependable and cost-effective silicone parts that will work as planned over several years.
Time- Take time to compare your drawings to both processes. The additional hours spent at the front end in making the right choice are huge payoffs during the lifecycle of the product.
