The typical silicone compression molding defects are flash, bubbles and voids, short fill (incomplete filling), tearing, poor curing, surface marks, deformation and dimensional variation. These problems cannot be that of a solitary accident. Rather, they tend to come about due to design imbalances in parts, material processing, mold condition, processing parameters, and quality control.
A large number of buyers presume that compression molding flaws are primarily due to incompetent operator performance. In practice they frequently have their origins in high level choices in design, tooling and process layout. To minimise silicone compression molding defects, it is necessary to employ a systematic control of design, material, mold condition, process parameters, and inspection standards, as opposed to simple final inspection.
Why Compression Molding Defects Happen
The problem of compression molding defects is normally not due to a single factor but variation in the process. The behavior of silicone material is very sensitive to temperature, pressure, curing time, hardness of the compound, moisture content, location in the mold and state of the mold. Problems can also be triggered by part geometry, change in wall thickness, venting design and direction of demolding.
The process of defect prevention should start way before mass production- at the design review and mold developing phase. To compare suppliers among OEM customers, silicone compression molding solution review may assist in understanding whether the tooling, process control, and inspection capability required by the manufacturer in eliminating repetitive defects are present.
Quick Overview of Common Silicone Compression Molding Defects
The first step is to identify the visible defect. The real job is to trace back the actual cause to the process, mold, material or design. The most common problems in silicone compression molding include:
| Defect Type | What It Looks Like | Common Root Cause | Prevention Focus |
| Flash | Thin excess material around edges | Excess material, high pressure, mold gap | Material weight, mold fit, pressure |
| Bubbles / Voids | Air pockets inside or on surface | Poor venting, trapped air, material issue | Venting, preform placement, material prep |
| Short Fill | Incomplete shape or missing edges | Low material, low pressure, poor flow | Material loading and pressure |
| Poor Curing | Soft or unstable part | Low temperature or short cure time | Cure time and temperature |
| Tearing | Damage during release or use | Sharp corners, weak areas, poor demolding | Draft, radius, demolding method |
| Surface Marks | Stains, scratches, uneven finish | Dirty mold, residue, contamination | Mold cleaning and material handling |
| Deformation | Warping or shape distortion | Early demolding, uneven curing | Cure control and cooling |
| Dimensional Variation | Part size inconsistency | Shrinkage, pressure variation, material variation | Process records and inspection |
Defect 1: Flash Around the Parting Line
Flash is the silicone that leaks between surfaces of the molds when compressing. Although a small amount of flash is appropriate in compression molding, too much flash adds to the cost of trimming, may cause parts to fit poorly, look bad, and seal poorly.
Flash is usually caused by excess content loaded, pressure, mold wear, improper mold alignment or improper venting.
| Possible Cause | Why It Creates Flash | How to Reduce It |
| Too much material loaded | Excess silicone escapes from cavity | Control material weight per cycle |
| Excessive pressure | Forces material out of mold gaps | Adjust pressure range |
| Mold wear or gap | Creates escape path | Inspect and maintain mold surfaces |
| Poor mold alignment | Uneven closing pressure | Check mold alignment |
| Oversized vents | Allows material to flow out | Optimize vent size |
Defect 2: Bubbles, Voids, and Trapped Air
Bubbles and voids compromise the part and lower the appearance quality and in functional applications may lower sealing or flexibility. They are formed when air is imprisoned in the mold cavity or in silicone itself.
| Possible Cause | Visible Symptom | Prevention Method |
| Poor venting | Surface bubbles or trapped air marks | Improve vent location and cleaning |
| Incorrect preform placement | Voids in repeated locations | Adjust material shape and placement |
| Material contamination | Random bubbles or surface defects | Improve material storage and handling |
| Fast mold closing | Air cannot escape in time | Adjust closing speed or venting |
| Deep cavity design | Air trapped in corners | Add radius or modify venting |

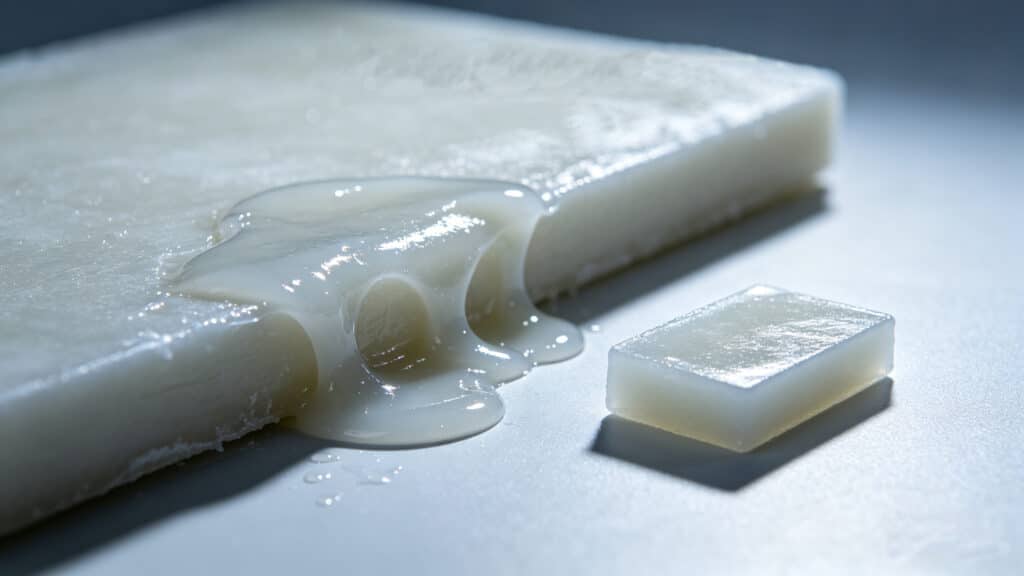

Defect 3: Short Fill or Incomplete Molding

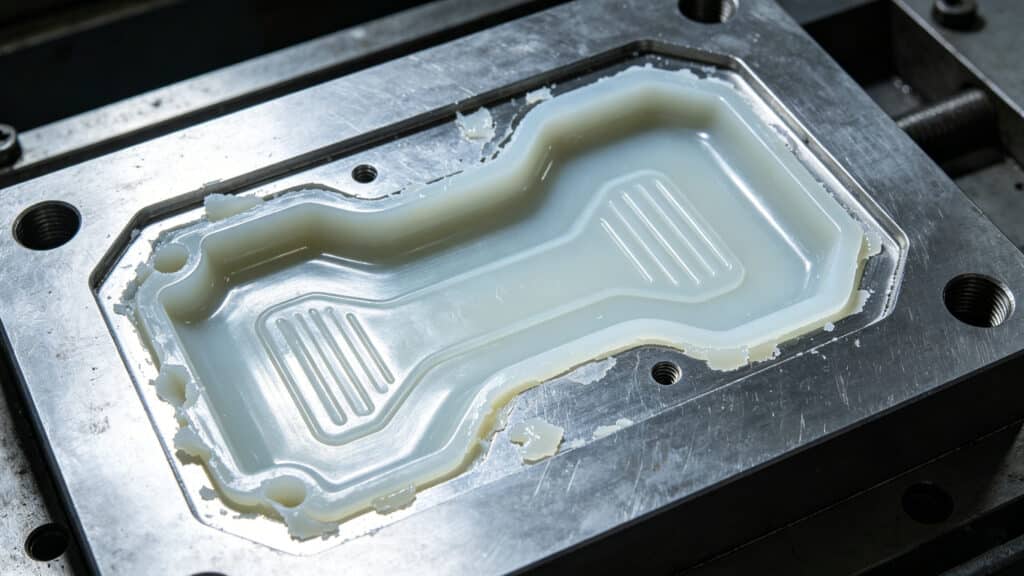

Short fill: The silicone does not fill the entire mold cavity, leaving edges missing, details incomplete, thin, or underformed.
| Issue | Typical Result | What to Check |
| Low material weight | Missing edges or incomplete volume | Material weighing process |
| Low pressure | Poor detail transfer | Pressure setting |
| Low temperature | Poor flow and slow cure | Mold temperature |
| Narrow flow path | Incomplete small features | Part geometry and flow design |
| Poor preform placement | Uneven filling | Material placement method |
Defect 4: Poor Curing or Under-Cured Silicone
Poor curing causes parts to be soft, sticky, weak or hard in a spotty manner. Under-curing is usually caused by low mold temperature, reduced curing time, thick areas or unsteady positions. Over-curing may also take place resulting in brittleness or surface alterations.
| Curing Problem | Part Behavior | Prevention Focus |
| Under-cure | Soft, sticky, weak, poor resilience | Increase cure time or temperature appropriately |
| Uneven cure | Hardness variation | Improve temperature uniformity |
| Over-cure | Possible brittleness or surface change | Avoid excessive curing cycle |
| Thick-section cure issue | Center may cure slower | Adjust time based on wall thickness |
Defect 5: Tearing, Cracking, or Weak Edges
Tearing is frequently encountered during demolding, trimming, assembly, or in the real use. Sharp corners, thin unsupported walls, inappropriate radius design, inappropriate hardness, or undercuring often lead to weak edges.
To decrease the risk of tearing:
- Add radius to sharp internal angles.
- Shun very thin unsupported edges.
- Choose appropriate Shore hardness to the desired purpose.
- Write appropriate demolding direction and draft where necessary.
- Confirm complete level of cure prior to trimming or assembly.
- Conduct tests on samples in actual use to validate mass production.
Defect 6: Surface Marks, Contamination, or Poor Appearance
Surface imperfections, e.g. stains, dust spots, scratches, uneven finish or flow marks, do not necessarily impact functionality, but can also greatly rise the rejection rates, particularly in kitchenware, baby products, personal care, and pet products.
| Surface Defect | Possible Cause | Prevention Method |
| Dust marks | Poor handling or open environment | Improve clean handling and storage |
| Scratches | Mold wear or demolding friction | Inspect mold surface |
| Stains | Material or release-agent residue | Control material and release use |
| Uneven texture | Mold surface inconsistency | Maintain cavity surface |
| Flow marks | Poor material placement or pressure | Optimize preform and pressure |
Defect 7: Deformation and Dimensional Variation
Stress and size change cause severe issues to components that need to interlock, fit, or assemble accurately. Final dimensions are sensitive to silicone shrinkage, curing conditions, cooling rate, demolding timing and variation of material batch.
Flexible components must have agreed inspection procedures since the pressure of handling with hands can manipulate measurements. Prevention can be realistic tolerance planning, constant process parameters, and regularized measurement procedures.
How to Prevent Defects Before Mass Production
Defect prevention must not be initiated once defects have been noticed in the batch production but must be initiated at the stage of project development. The systematic method significantly enhances performance.
| Prevention Step | Why It Matters |
| Review part design for manufacturability | Reduces tearing, flash, filling, and demolding risks |
| Confirm silicone material and hardness | Prevents mismatch between function and process |
| Validate mold design and venting | Reduces bubbles, voids, and short fills |
| Control material weight per cycle | Prevents short fill and excess flash |
| Establish temperature and pressure range | Improves curing and filling stability |
| Run sample validation before mass production | Identifies defects before scale-up |
| Define inspection criteria clearly | Avoids inconsistent quality judgment |
| Record process parameters | Supports repeat orders and troubleshooting |
| Maintain mold condition | Prevents recurring defects over time |
What Buyers Should Ask a Silicone Compression Molding Supplier
Intelligent consumers consider process measures and quality systems, rather than just cost and sample looks.
| Buyer Question | Why It Matters |
| How do you control material weight per cycle? | Prevents flash and short filling |
| How do you validate curing time and temperature? | Ensures stable part performance |
| How do you handle venting and trapped air issues? | Reduces bubbles and voids |
| What inspection standards are used for flexible silicone parts? | Improves measurement consistency |
| How do you manage mold cleaning and maintenance? | Prevents repeated surface defects |
| How are process parameters recorded for repeat orders? | Supports batch consistency |
| What defects are acceptable or unacceptable? | Aligns quality expectations early |
Common Mistakes When Solving Compression Molding Defects
Defect troubleshooting is less effective due to a number of common mistakes:
- Addressing all the defects as an operator issue rather than investigating the underlying causes.
- Modification of pressure without checking the weight of materials.
- Extending the curing time without monitoring temperature homogeneity throughout the mold.
- Neglecting the enhancement of venting in the presence of bubbles.
- Trusting end-check as the main quality control technique.
- Unrealistic tolerances to soft silicone components.
- Accepting a sample that is not defined in terms of mass-production.
- Selecting a supplier on the basis of unit price.
Conclusion — Defect Prevention Requires Process Control, Not Guesswork
Defects in common compression molding can be minimized when manufacturers consider quality as a process, and not a final inspection process. Through design control, material preparation, mold condition, temperature, pressure, curing, venting, demolding, and inspection standards, silicone components have a higher consistency, fewer defects and more predictable performance in OEM manufacture.
There are results of successful implementation of DFM review, approved tooling, strict process parameters, clean production handling, and well-defined quality agreements between buyer and supplier. Routine control, not trial, provides repeatable performance of custom silicone parts.
