Maintaining the same color silicone on a mass production level is not just a matter of matching a Pantone number but needs process control, dispersion of the pigments, consistent curing system and quality control.
The nature of silicone color matching makes it especially difficult to match. Silicone is semi-translucent as opposed to many plastics, enabling light to move through it and do scattering and changing perceived shade to different degrees based on part thickness, light, and surface finish. The concentration of pigments, the quality of dispersion, and the curing conditions are very important in the end results. The absence of strict control of the processes makes the slight deviation visible in batches or even in multi-cavity castings.
The myth, which is widespread among the brands, is the notion that provision of Pantene code is enough to ensure consistent performance. Practically, the translucency of silicone, the fluctuations of raw materials of the batch and the process of making molds arrive with variability, which cannot be captured completely by visual matching. Unbroken silicone color during high production relies on regulated formulation, predictable processing parameters and quantifiable quality criteria – not visual evaluation only.
We employ ΔE (Delta E) the conventional unit of color difference in the CIE Lab* space to measure deviation. This is due to the fact that the closer the ΔE it is to a zero the more closely it can be matched and that anything less than 1.0 would not be seen with the human eye in controlled conditions.
Why Silicone Color Is More Complex Than Plastic Color
The behavior of silicone color is deeply different than the behavior of opaque thermoplastic such as ABS or PP, since silicone is semi-transluent.
Color is placed upon the surface in opaque plastics, and the color can be seen as reflective and the shade can be anticipated. Silicone on the other hand does relay and reflect light and thus the final image is greatly reliant on the interactions of light in the depth of the material.
The most important issues that affect the appearance of Silicone Colors.
Key Factors Influencing Silicone Color Appearance
| Factor | Impact on Color Appearance |
| Translucency | This is due to the perception change caused by light transmission; colors are perceived to be lighter or change in color depending on the background they are observed. |

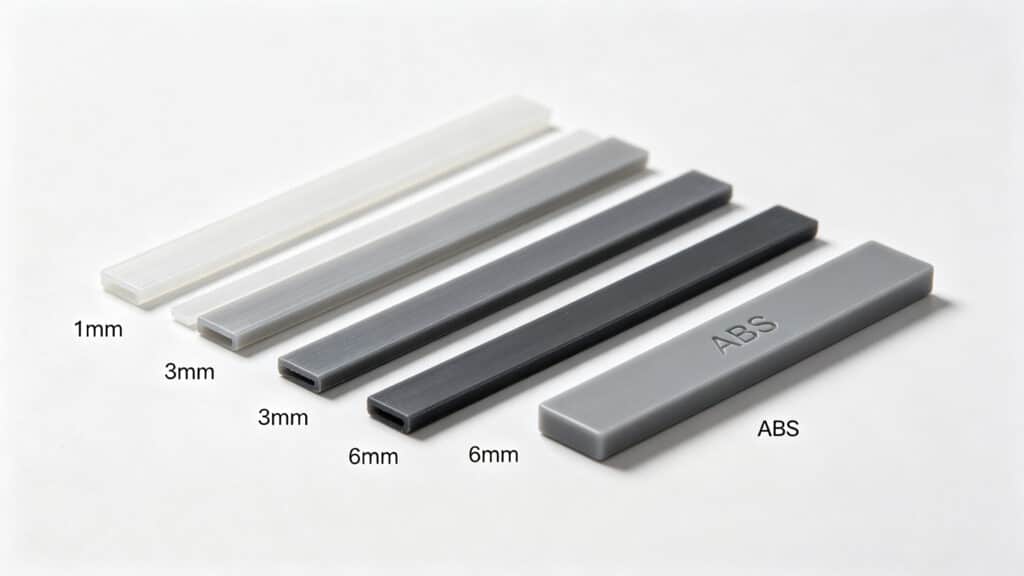

| Thickness | Through thicker sections absorb more light, making them appear darker; thin walls are made to look washed out. |
| Surface Finish | Matte finishes diffuse light for softer tones; glossy surfaces reflect more, intensifying perceived saturation |
| Shore Hardness | Softer grades (e.g., 30A) allow better pigment flow but can show uneven distribution; harder grades (e.g., 70A) may compress pigments differently |
| Mold Cavity Variation | Multi-cavity tools create low levels of flow, or temperature variations which cause slight changes in tone among the parts. |
These characteristics are the reason behind why Pantone matching silicone can take more costs of iteration than plastic counterparts – the material in itself manipulates the way the pigment is perceived.
The Role of Pigment Dispersion and Masterbatch Quality
The basis of repeatable color is the precision with which silicone pigment dispersion occurs; lack of it brings about streaks, spotty spots, or batches.
The types of color pigment dispersions that are usually used by manufacturers are liquid color pigment dispersions or solid color masterbatches that have been compounded into silicone base. High-consistency rubber (HCR) is more efficient using masterbatches and liquid pigments are more effective in liquid silicone rubber (LSR), thanks to their speed of incorporation.
Process Factors and Risks
| Process Factor | Risk if Uncontrolled |
| Pigment Ratio | Over- or under-dosing causes color shift or fading |
| Mixing Time & Method | Uneven tone, visible agglomerates, or marbling |
| Equipment Calibration | A drift to formulation occurs when either the actual weight or the actual count of items changes. |
| Contamination | Discoloration during residue or cross-contamination. |
| Storage Conditions | Stability is lost to pigment degradation due to heat, moisture or UV. |
It is important to weigh accuracy to 0.01g and calibrated high-shear mixers. The Masterbatches offered by reputable suppliers reduce the risks, as they pre-dispense high pigments concentration, thus being evenly distributed in the compounding process.
How Curing Temperature and Time Affect Color Stability
The silicone color properties depend on the curing conditions directly; the deviations are associated with the silicone darkening, yellowing, or underdeveloped shade.
Platinum-cured systems usually produce more intense and consistent colors with reduced chances of creating byproducts whereas peroxide-cured systems do have a slight tint of yellow due to residues, particularly in the absence of post-curing.
Curing Variables and Effects
| Variable | Effect on Color |
| High Temperature | Darkening or yellowing due to over-cure or thermal degradation |
| Low Temperature | Incomplete curing, resulting in hazy or off-shade appearance |
| Uneven Heating | Shade variation across part or between cavities |
| Post-Curing | Stabilizes tone but can slightly alter if prolonged |
| Cure System (Platinum vs Peroxide) | Platinum offers better clarity; peroxide may cause minor haze or bloom |
These problems are avoided by the use of a precise temperature regulation (±25 C) either through the use of heated platens or injection systems and uniform cycle times. Color is further ensconced in controlled ovens in post-curing.

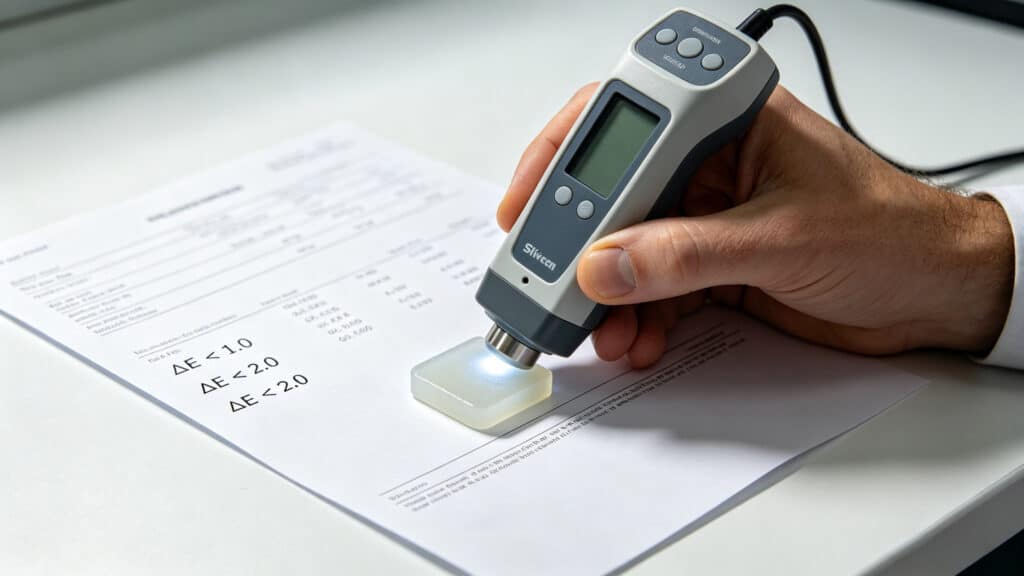

Measuring Color: ΔE and Quality Standards
Spectrophotometric objective determination is better than visual determination of silicone color consistency.
f Delta E is used to measure the dissimilarity between a personality and the objective in Lab space, taking into account the lightness, hue, and chroma. The sensitivity of human eyes depends on personal factors and light, therefore, it can be concluded that using only visual verification would be a risk of inconsistency.
Typical ΔE Tolerances
| Quality Level | Typical ΔE Tolerance |
| Premium Brand | ≤ 1.0 (imperceptible to most observers) |
| Standard Consumer | ≤ 2.0 (acceptable for non-critical applications) |
| Industrial Parts | ≤ 3.0 (functional focus over aesthetics) |
D65 illuminant (daylight simulation) and 10 day observer angle is being measured in flat samples of uniform thickness. Light pastels are tightened or critical IP-licensed product tolerances tightened.
Common Causes of Batch-to-Batch Color Variation
Silicone color variation between batches tends to be uncontrolled, and thus has no reference to the original master sample.
- Raw material batch variations Base silicone or silica fillers have a slight modification in terms of either being opaque or reactive.
- Change in pigment supplier — change in dispersion due to changes in the purity of a lot-to-lot or the size of particles.
- Change in Mold temperature- Change in cure kinetics and end shade.
- Hardness adjustments – Fillers or additional oil can be added to adjust durometer which will have an effect on pigments.
- Inclusion of recycled material – Regrind incorporates unknowns which modify translucency.
- Uneven curing time – Press dwell or post-cure varies; this results in over/under-cure.
Recording each parameter in each batch aids in tracing and eliminating it.
Multi-Color Silicone: Additional Complexity
Multi-color silicone molding presents additional difficulties over the single color processes.
Multi-shot or overmolding methods need high accuracy of registration, timing and interface control in order to avoid defects.
Multi-Color Challenges
| Challenge | Potential Issue |
| Color Bleeding | Blurred boundaries or migration at interfaces |
| Temperature Timing | Shade mismatch if layers cure at different rates |
| Material Viscosity | Uneven flow causes poor registration or voids |
| Interface Contamination | Residues lead to discoloration or weak bonding |
Reduced risks are brought about by tight process window, material pairs that are compatible, sequential molding and line cooling steps.
How to Improve Color Consistency in Mass Production
A punitive, recurrent structure is needed to improve silicone color consistency.
- Uniform pigment proportion — Stock pigments that have certified weights.
- Controlled mixing protocol -Unspecified shear time, speed, and machine inspection.
- Stable mold temperature- Gas stable heating and monitoring.
- Spectrophotometer validation Setup Measure first-off and periodic.
- First-article approval — Pre-full-run full run documentation.
- Batch documentation — Document all parameters to be traced.
Discipline of process; doing without visual approval is a factor that leads to long-term reliability.
When Minor Color Variation Is Unavoidable
The perceived shifts are exaggerated by environmental lighting differences. The natural translucency makes the parts to be different on the skin and white background. Pastel effect enhances thickness effects very much. There is an inherent difference between thick and thin sections. There is subjectivity of human perception.
Expected tolerances It is over-engineering to have clear, quantifiable tolerances.
Conclusion — Color Consistency Is a Process-Control Outcome
It takes more than a reference to a Pantone code to develop Silicone color matching in mass production. Batch consistency is determined by controlled pigment formulation, stable curing parameters and quantifiable quality standards (such as ΔE). Brands where more emphasis is placed on process control in lieu of visual estimation will give a more consistent and predictable color output.
This is a manufacturing-oriented design that guarantees that products conform to brand requirements run to run, particularly of color-sensitive uses such as licensed toys, consumer goods or kitchenware.
