Molding processes include parting lines and gate marks, the visibility of which, and their effect on appearance of a product, is totally dependent on precision of the mold design, choice of gate placement strategy, and disciplined process control.

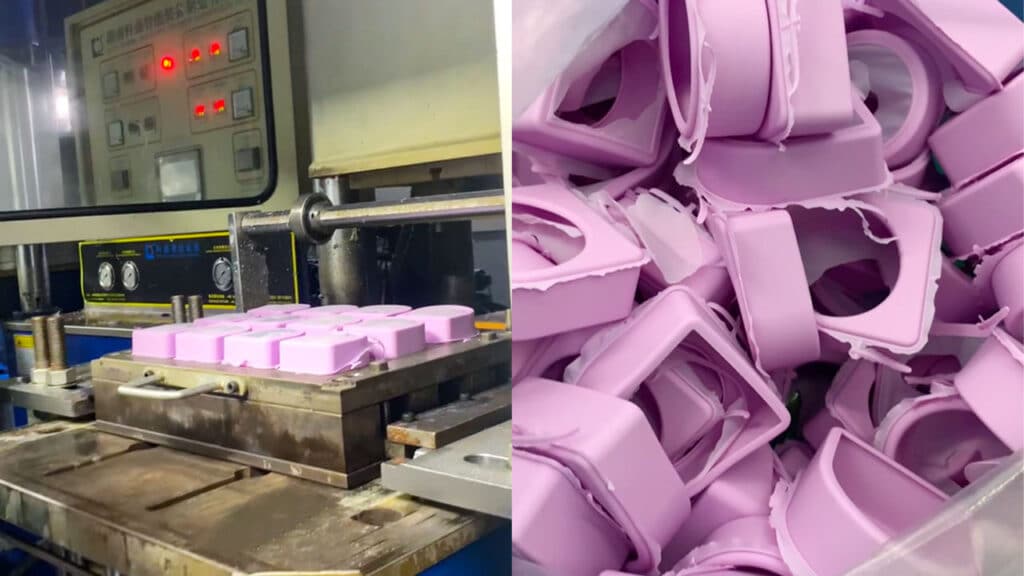

These characteristics are necessitated structurally in silicone molding, either with the liquid silicone rubber (LSR) or high-consistency rubber (HCR). The two halves of mold (core and cavity) come together and spread apart to release the part creating a parting line. The uncured silicone flows into the cavity through the runner system leaving behind a gate mark.
Both are inevitable to certain extent since the process of molds opening and closing is necessary, and that the material should flow under pressure. Most product designers who are first time users of silicone are hoping to have fully smooth surfaces, such as machined metallic or 3D-printed prototypes. As a matter of fact, visible silicone defects of the form of mold lines can never be eradicated, but only reduced to small proportions with the aid of engineering.
The idea behind the manufacture of silicone moulds is not to eliminate the stop marks or gate marks, but to regulate their location, size, and the presence capital with appropriate mould engineering. When properly done, these features can be virtually invisible on the side that faces the consumer such as a phone case, baby products or even bespoke silicone mats.
What Causes Parting Lines in Silicone Molding?
The line separations are considered defects in the cosmetic mould of half halves that can never meet uniformly or because the material leaks when in pressure.
The mark of the witness of the split split of the mold is the line itself. Even in silicone molding, especially LSR, the low viscosity of the material allows the material to creep into even minute cracks (as small as 0.0002 inches in some instances), causing flash or offset lines.
Key causes include:
- Mold split design and alignment tolerance Mismatch due to inaccurate machining or setup introduces stepped or offset lines.
- Tool wears across cycles- Edge erosion/ worsening of gaps.
- Process factors -High injection pressure or imbalance of force squeezing the material out by the clamp.
- Differences in materials and methods the LSR is easier to flow compared to HCR, which means that it poses more risk to flash; compression molding of HCR will create thicker lines without appropriate control.
| Cause | Effect on Visibility |
| Poor alignment | Offset or stepped line (most noticeable) |
| Tool wear | Increased flash and irregular line thickness |
| Deep cavity design | Thicker, more pronounced parting line |
| High injection pressure | Material squeeze-out and flash buildup |
The latter concerns silicone molding particularly in parting line applications in curved or transparent, using which even small discrepancies can reflect the light and get attention.
What Causes Gate Marks?
When it comes to filling, they must gate, and this is where the gating takes place: gate marks are small bumps, dimples or even rounded scars where silicone enters the cavity and this cannot be avoided.
The visibility is based on the type of gate, its size, position, material viscosity and flow dynamics. Gates in LSR injection molding are normally reduced in size by shear-thinning behavior, though poor design leaves visible silicone gate marks.
Common contributors:
- Location of gate –Visible points magnify the flaw.
- Gate size and type -Bigger size of gates leaves bigger vestige.
- Material flow Material flow –The entry is highly viscous or turbulent giving rise to surface irregularities.
- Over packing -Incident taking place behind the gate- distortion of the mark.
| Gate Type | Typical Mark Characteristic |
| Edge gate | Small surface bump or ridge |
| Submarine gate | Hidden under parting line, but potential internal stress |
| Direct gate | Larger visible circle or sprue remnant |
| Cold runner gate (LSR) | Minimal point mark, but still present |
To expound more on how to maximize the use of gate systems in liquid silicone processes, see our LSR injection molding guide.
How Mold Design Reduces Visible Parting Lines
A proper mold design predetermines approximately 80 percent of success in cosmetics before the initial run of the shot is in operation.
Strategic parting line placement, the strategy that has the greatest effect, is to route it around non-cosmetic or low-visibility zones such as back surfaces, edges or textured surfaces. Further camouflage of the line is done by precision machining (tolerances less than 0.01 mm in sensitive areas), and surface texture matching.
Additional tactics:
- The line should not be straddling rounded edges of cosmetics.
- Apply stepped or beveled parting lines in order to minimize complex geometries flash.
- Add shut-offs or interlocks to enhance alignment.
| Design Strategy | Benefit |
| Hidden parting line placement | Less visible on final product |
| Texture matching | Line camouflage through visual blending |
| Tight tolerance machining | Reduced flash and offset |
| Polished cavity surfaces | Smoother edge transition |
In reality, we have observed the appearance of visibility to reduce drastically where parting lines are confined to natural design breaks instead of traversing smooth and high-gloss surfaces.
Gate Placement Strategy for Better Appearance
Placement of gates is a trade off between completion performance and aesthetics.
Non-cosmetic surfaces should always come first as the back walls, bottom edges or interiors. It conceals the mark or is less challenging to post-trim without impacting aesthetics. Visible faces with central gates are highly risky and particularly when using a transparent or matte silicone material.
Flow should be to thick areas first, so that there are no short shots or empty space, yet look wins over in cases where it is a part that has to be seen by consumers.
| Placement Decision | Cosmetic Impact |
| Back surface gate | Hidden mark, preferred option |
| Thin edge gate | Reduced bump size |
| Central visible area | High risk of noticeable defect |
| Near logo or branding | Not recommended—draws attention |
Process Adjustments to Minimize Marks
The finest mold requires an exercise of discipline to curtail marks.
Key parameters:
- Injection pressure The high pressure may be the cause of squeeze-out at parting lines, ensure a full fill and nothing beyond that.
- Stability of the mold temperature — Variable heat causes progressional curing as well as distortion.
- Clamps force balance- Lack of sufficient forces will permit flash and separation.
- Cure time When short cycles are used, it is prone to leave behind shrinkage marks around the gates.
| Parameter | Adjustment Goal |
| Injection pressure | Avoid overpacking and flash |
| Mold temp | Stable curing, minimal distortion |
| Clamp force | Prevent mold separation |
| Cure time | Avoid material shrink near gates/lines |
Minor adjustments in this area frequently fix 2030 percent of repeat cosmetic problems without switching of tools.
QC Checks for Cosmetic Control
Proactive QC takes issues into account before they are meant to be produced in large quantities.
Begin by performing first article inspection (FAI) on 510 shots, parting line thickness (target <0.05 mm flash) and gate vestige height. Visual inspections in uniform light display displacements at an early stage. Check tool wear after every three months – return to a mirrored finish when needed.
Ongoing:
- Checks of critical lines of the form of a dimension.
- Audits of consistency of gate trimming.
- ERP tool surface audit.
| QC Item | Purpose |
| Visual inspection | Detect offset or flash early |
| Dimensional check | Measure line thickness and gate remnant |
| Tool surface audit | Prevent wear-induced gaps |
| Gate trimming review | Maintain consistent appearance post-process |
When Redesign Is Necessary
There are defects that cannot be eliminated even when optimization is performed; excessive offset (more than 0.1 mm), repeated flash or gate marks in non-cosmetic areas that cannot be eliminated.
Issues may be revealed when customer aesthetic need (e.g. high-gloss finish) needs to be changed. The tool would be required to be modified in such situations; the parting surfaces re-cut, the gates moved or a texture applied. Assume 412 weeks lead time and incur a great expense (typically 2050% original tooling), hence early DFM reviews avert the same.
Conclusion — Cosmetic Control Is Engineering Discipline
Silicone molding is parting lines and gate marks which can be controlled due to careful design.
The design of the mold establishes the basis of 80 percent of the cosmetic result tight tolerances, accuracy of placement are the largest contributors. The process discipline and strict QC make sure that small problems do not translate into production delays or rejects.
By considering cosmetic control as a fundamental engineering concern and not an adhoc task, teams would produce always-improved appearance in high-volume applications of silicone parts, be it custom silicone cell phone cases or gaskets, or branded merchandise. The most effective risk reducer is still early collaboration during designing to manufacturability.
