Material Selection Guide: Choosing the Right Silicone for Custom Seals
The decision of which silicone to use in custom seals does not involve selecting one that has the most expansive assertions. It is concerned with the alignment of material behavior with the real sealing environment, compressive, geometries, and longlife performance requirements.
Most seal performance issues begin way prior to the initial prototype being injected. They start with simplistic choice of materials. Another myth is the fact that silicone is a single material that can be used in wide ranges of applications. As a matter of fact, there are considerable differences in silicone compounds in terms of their hardness, recovery, environmental resistance, and application fit. The correct silicone to have a custom seal is the one that aligns with the actual operating performance, deformation needs, exposure to the environment and long-term performance objectives of the application – not the one with a more generalized specification.
Why Material Selection Has a Direct Impact on Seal Reliability
The reliability of seals does not start with the geometry of the part, but with the behavior of the material itself. Even a good seal will not work when the compound is inadequately suitably matched to the actual conditions that it will experience.
The type of material used has a direct impact on the response of the seal when compression is applied on the seal, age, and consistency in which the seal retains its sealing force and the longevity of the seal. Bad choices enhance risk of leaks, reduce service life and introduce inconsistency among production batches. This is why the choice of materials to be used in the manufacturing of a custom silicone seals should be considered an engineering choice as opposed to a fast catalog decision.
| Material Factor | Why It Matters for Seal Performance |
| Hardness | Affects fit, deformation, and contact pressure |
| Compression set resistance | Influences long-term sealing force retention |
| Temperature capability | Supports stability in hot or cold conditions |
| Chemical compatibility | Reduces degradation and swelling risk |
| Weathering resistance | Supports outdoor durability |
| Process stability | Affects repeat production consistency |
Start with the Real Application Conditions, Not the Material Name
A good choice on silicone seal material will always begin with an understanding of the actual operating environment followed by not starting with the name of a given silicone grade.
Engineers need to sketch the entire range of conditions that the seal will meet before talking about the compounds. This covers temperature range and thermal cycling, whether the seal is used under static or dynamic conditions, whether it is exposed to moisture, dust, UV and ozone, oils, cleaning agents or other chemicals, indoors or outdoors, potential service life and how the seal should be assembled and the necessary compression behavior.
| Application Condition | Material Selection Implication |
| High operating temperature | Requires stable heat resistance and aging control |
| Low temperature exposure | Requires flexibility and recovery at lower temperatures |
| UV / outdoor exposure | Requires strong weathering resistance |
| Chemical contact | Requires compatibility review before material selection |
| Long-term static compression | Increases importance of compression set resistance |
| Repeated assembly cycles | Demands resilient recovery behavior |
With these factors well comprehended, the procedure of silicone material selection for making custom seals is much more focused and dependable.
In most sealing projects, such material choices are intimately coordinated with the general requirements of custom silicone seals design and engineering custom silicone seals
Hardness Is Important — But It Should Not Be Used Alone
Hardness is one of the most commonly talked about characteristics when silicone is being specified to use as seals, but when used alone, the creation will tend to cause performance imbalance.
Silicone is softer, easier to deform, and can form initial contacts, but might not be as structurally stable as required in some designs. Increased hardness will offer the benefit of increased shape retention and support, but the increased assembly force may be demanded and it may be too firm in some uses. The trick is to know how hardness is responding to groove design, squeeze percentage and the total stress that the seal would be subjected to.
| Hardness Consideration | Practical Design Effect |
| Softer silicone | Easier deformation, but may reduce structural stability |
| Medium-range hardness | Often offers balanced fit and recovery |
| Higher hardness | Can improve shape support, but may need higher assembly force |
| Hardness mismatch to groove design | Can create unstable or inconsistent sealing behavior |
| Hardness considered with compression target | Leads to more predictable design decisions |
The choice of silicone seal hardness should thus be considered within the entire sealing system, instead of being considered as an individual specification. Our Shore Hardness Guide for Silicone provides detailed recommendations.
Compression Set Resistance Matters for Long-Term Performance
One of the most important material-related factors of sealing reliability over long-term sealing is compression set resistance.
A seal can be soft and compliant in initial assembling, but its resistance to continuing to exert sealing force in months, or years, will be critically dependent on the degree to which the material recovers after compressing. The issue of low compression set is particularly critical in the case of a static seal, which is constantly under a load. During extreme weather conditions, compression set can be speeded by high temperatures, and recovery performance even decisive.
| Compression Set Factor | Design Relevance |
| Low compression set tendency | Better long-term ability to maintain sealing force |
| High compression set tendency | Greater risk of permanent deformation |
| Constant compressive load | Increases recovery demands |
| Heat exposure | Can accelerate long-term deformation |
| Recovery under real use | Matters more than initial appearance after assembly |
Poor compression set performance may silently compromise a overall sound seal geometry and therefore it is worthy the close attention in any material specification that custom silicone seals are made of.
Temperature Resistance Should Be Evaluated as a Range, Not a Single Claim
Silicone may be claimed to have high temperature but out of context, it may be deceptive. The range of temperature that the seal will be subjected to, both the highest and lowest operating temperatures, and character of thermal exposure, is important.
Flexibility at low temperature, as temperature stability is at high temperature, can be crucial, especially in applications where there is a cold start or in outdoor application. Repeated heat expansion and contraction thermal cycling may impose different loads on materials than do constant temperature exposure. The long term heat aging behaviour generally gives a more realistic view of the performance as compared to the short term peak resistance.
| Temperature Factor | Why It Matters |
| Maximum operating temperature | Sets upper performance expectation |
| Minimum operating temperature | Affects flexibility and contact stability |
| Thermal cycling | Tests long-term recovery under repeated stress |
| Continuous heat exposure | Influences aging and sealing durability |
| Short-term peak exposure | May differ from long-term operating demands |
Chemical, Moisture, and Environmental Exposure Can Change the Right Material Choice
The material which will actually come in contact with the seal often dictates the choice of silicone material which is really appropriate.
Material stability can be caused by water, humidity, cleaning chemicals, oils, solvents and process fluids. The further requirements of UV and ozone are introduced during outdoor applications. An electronics part that works well in a dry, in-house electronics enclosure can be ruined in a short time once it comes into contact with oils or repeated laundry in a kitchen appliance.
| Exposure Type | Material Selection Concern |
| Water / moisture | Requires stable sealing and resistance to change |
| UV / ozone | Demands weather-resistant performance |
| Cleaning agents | May affect compound stability |
| Oils or process fluids | Requires compatibility review |
| Chemical splash or immersion | Can increase swelling or degradation risk |
| Outdoor weathering | Requires longer-term durability consideration |
Early consideration of chemical resistance of silicone seals, as well as weathering performance, should hence be considered at the initial stage of selection before the tooling allocation is considered. See our comparison Silicone vs Other Elastomers for Seals to understand when silicone is the best choice.
Material Selection Must Also Consider Manufacturability and Production Consistency
The technically optimal material should also be useful enough to be capable of molding in mass production.
The processing stability, cure behavior, dimensional repeatability, and batch-to-batch consistency may affect whether the end parts will work as intended throughout the lifetime. Completely specialised compounds may occasionally pose difficulties in moulding or in curing and influence quality or elasticity of surface or durability.
| Manufacturing Consideration | Why It Matters |
| Processing stability | Supports repeatable molding quality |
| Cure consistency | Affects final elasticity and durability |
| Dimensional repeatability | Influences real sealing performance |
| Surface quality after molding | Affects sealing contact and appearance |
| Batch-to-batch consistency | Supports OEM production reliability |

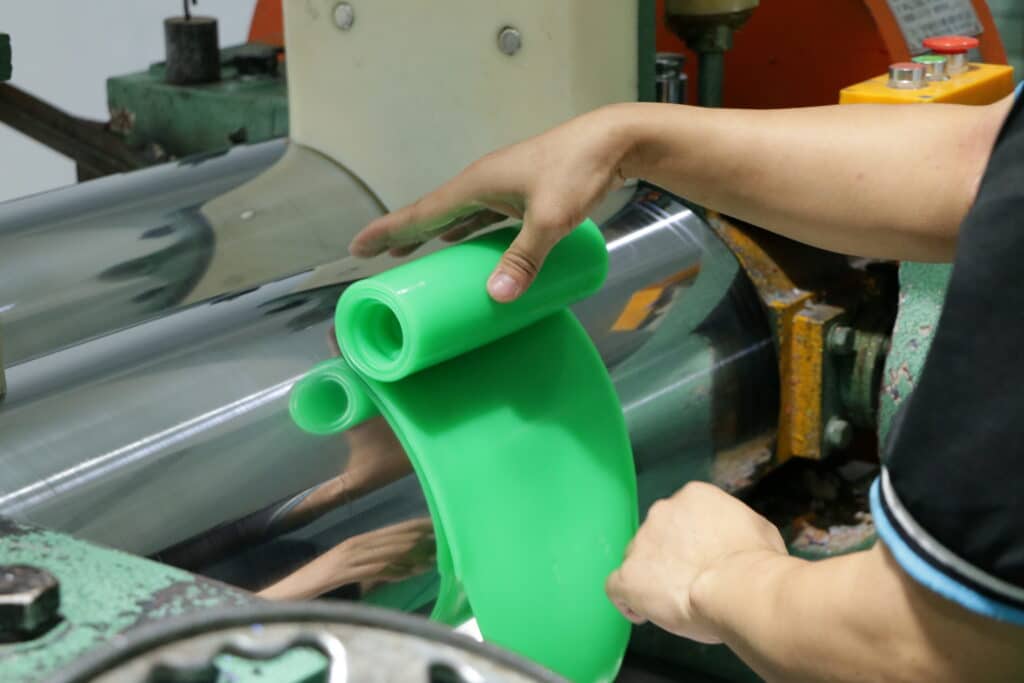

Silicone seal manufacturability is therefore an essential part of any responsible material decision — particularly when using silicone compression molding.
Common Material Selection Mistakes in Custom Seal Projects
There are a number of repeated errors which make sealing problems in industries.
| Common Mistake | Likely Result |
| Hardness-only selection | Poor balance between fit and recovery |
| Heat-only selection | Missed risks from chemicals, UV, or long-term aging |
| Ignoring compression set requirements | Loss of sealing force over time |
| No exposure review | Premature degradation in real use |
| Treating silicone as a uniform category | Inaccurate material decisions |
| No manufacturing review | Inconsistent repeat-order performance |
These are the most frequent mistakes when selecting seal material that can greatly enhance the likelihood of a sustainable, repeatable sealing solution.
A Practical Material Selection Checklist for Custom Seal Projects
A structured checklist used in the beginning of the project will help to set the expectations straight and minimize the probability of redesigns in the future.
| Checklist Item | Why It Should Be Confirmed |
| Actual operating temperature range | Guides thermal performance expectations |
| Static or dynamic use condition | Changes material and recovery priorities |
| Exposure to water, UV, oil, or chemicals | Affects compatibility and durability |
| Required hardness range | Influences fit and deformation behavior |
| Compression set expectations | Supports long-term sealing force |
| Expected service life | Defines durability target |
| Groove and compression design | Ensures material fits the application system |
| Production consistency requirements | Supports repeat manufacturing reliability |
The combination of reviewing these items prior to finalizing the compound will assist in making sure that the choice of silicone to use in seals results in viable, production-ready results. Our Quality Control for Custom Silicone Seals ensures these choices translate into reliable performance.
Conclusion — The Right Silicone Is the One That Matches the Real Application
The effective process of selecting material to be used in designing custom seals is not based on the selection of the silicone material that has the largest general claims. It is based on the prudent alignment of material behavior with the actual sealing environment, deformation requirements, undergoal of durability and manufacturability demands.
Combining hardness, compression set resistance, operating temperature range, chemical and weather exposure and manufacturability, the resulting seals have a much better chance of providing uniform, long-term sealing action.
