The draft angle of silicone parts cannot be chosen as an option any more than it is a requirement of DFM which defines demolding stability, surface, and consistency of production over time.

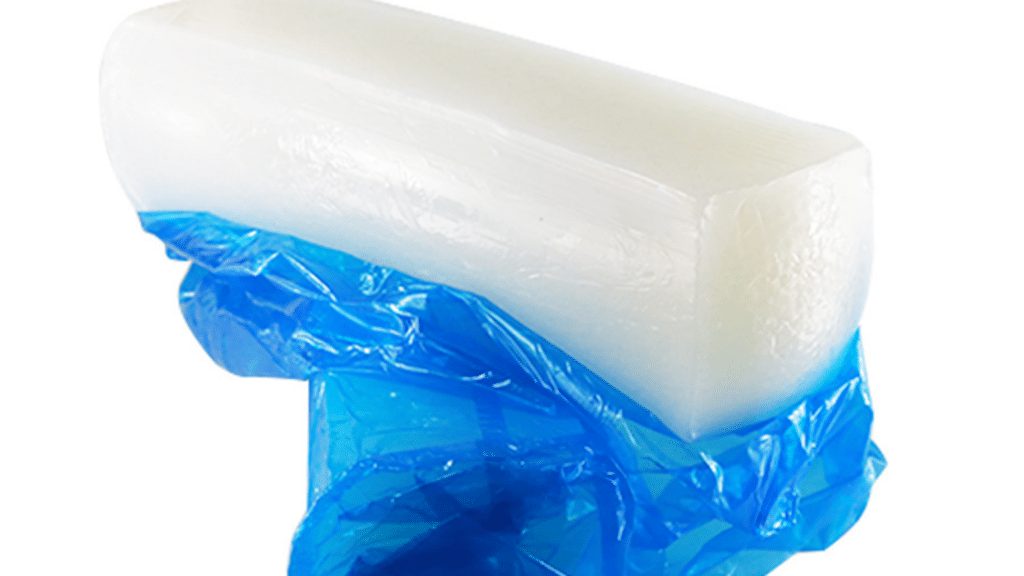

In silicone molding, draft advantage is the slight inclination to the vertical sides of a component, which enables it to be ejected without causing too much trouble out of the molding cavity. Although the silicone materials such as high-consistency rubber (HCR) and the liquid silicone rubber (LSR) are quite flexible and elastic, draft can pose a significant challenge. In the absence of sufficient draft, there can be high demolding forces acting on part, which causes tear at edges, surface drag marks, deformation, or can even cause damage to the mold due to repeated demolding.
The benefit of flexibility of silicone is a wrong impression amongst designers who think that draft is not as important as it is in rigid plastics. Practically, lack of draft results in stress concentration then ejection particularly along deeper features or textured surfaces, this leads to higher scrap rates, uneven dimensions, and flash, of parting lines. Even flexible silicone components have to be designed with draft angles to have repetitive demolding and a consistent dimensional regulation.
What Is Draft Angle in Silicone Molding?
Designated angle at the part walls designed to provide clearance when the mold becomes separated and is determined by the degree amount of the taper.
The sidewall on the mold cavity should not be parallel with the direction of ejection. Outside walls (core side) should draft to ensure that the part does not drag, inside cavities (cavity side) should be paid even greater care since trapped air or friction can cause tearing.
| Surface Type | Draft Required? | Risk if Ignored |
| External wall | Yes | Surface drag |
| Internal cavity | Critical | Tear risk |
| Deep ribs | Strongly recommended | Deformation |
| Textured surface | Higher draft needed | Surface damage |
Recommended Draft Angles for Silicone Parts
Silicone parts drawing angles depend on the depth, geometry, surface finish, and wall thickness, and process type – however, most problems can be avoided by commencing with a conservative practical real-world angle.
Superficial features can be allowed to withstand small drafts, and deep or textured ones require larger ones to overcome friction and elastic recovery forces. Mold surface condition (polish level or coating) is also involved; more taper is required in rougher finishes.
| Part Feature | Recommended Draft |
| Shallow walls (<10mm) | 0.5°–1° |
| Medium depth (10–30mm) | 1°–2° |
| Deep cavity (>30mm) | 2°–3° |
| Textured surface | +1° additional |
| Undercut features | Special evaluation |
Note that compression molding may usually afford a little more latitude in draft tolerance than the LSR injection molding process, which permits closer automation and has faster cycle times and requires machined draft with a bit more accuracy.
How Draft Angle Affects Demolding and Part Quality
Correct draft will minimize peak flexing forces, uniformly distribute stress of ejection, minimize friction at the surface and prolong life of the mold.
Low draft stresses the part to stretch or scrape on the walls of cavity causing observable defects and increasing maintenance requirements.
| Issue | Caused by Low Draft? | Result |
| Tearing | Yes | Scrap rate increase |
| Surface drag marks | Yes | Cosmetic defect |
| Deformation | Yes | Dimensional change |
| Mold damage | Possible | Maintenance cost |
Draft Angle in Compression vs LSR Molding
The requirements of draft associated with compression process and LSR process are significantly different because of material state, method of filling and method of demolding.
The more forgiving and less automation requiring compression granting process is there at the expense of LSR in that regard, whereas the automated injection through LSR is more delicate to use because it is required to avoid flash, and must clean up well too.
| Factor | Compression Molding | LSR Injection |
| Draft tolerance | More forgiving | Less forgiving |
| Demolding method | Manual | Automated |
| Draft precision | Moderate | Critical |
| Surface finish sensitivity | High | Very high |
LSR with automation is more sensitive to draft shortage.
Draft Considerations for Special Features
Deep grooves, embossed logos, or snap-fits are features that necessitate special draft planning to avoid the local stress or entrapment of air.
| Feature | Draft Recommendation | Risk |
| Embossed logo | ≥1° | Edge tearing |
| Debossed text | ≥1.5° | Air trap |
| Snap features | Case-dependent | Stress fracture |
| Rib structures | ≥1° | Warping |
Common Draft Angle Mistakes in Silicone Part Design
A few years of the mould-shop brings us the following mistakes:
- An assumption that zero draft is permissible since silicone is soft is acceptable.
- Disregarding the influence of surface texture on requisite draft is very dramatic.
- Designing non-tapered deep vertical walls.
- Lack of the engineering consultant on the concept stage with the mold engineers.
- Overcompensating and overdrafting which may affect fit or aesthetics in mating parts.
How Proper Draft Reduces Tooling Modification Risk
Realistic draft addition at an early stage eliminates the expensive rework of a steel at an early stage of sampling.
Making corrections to the tool may increase weeks of delay and thousands to the machining costs, particularly of multi-cavity tools. During prototype running, draft problems frequently are not reached until the item is scaled up to production scale, where minor pieces of tearing or flash can cause a high scrap factor. This is mitigated by bringing mold engineering into the DFM discussion very early in the tool steel is cut before.
Conclusion — Draft Angle Is a Small Detail With Major Impact
Silicone is flexible; however, draft angle is required to ensure dependable demolding and error-free manufacturing. Little tearing, flash and diminishing dimension and safeguard of tooling investment is increased by good draft minimization. Through considering draft as a tool of design rule in silicon components instead of an add-on, engineers obtain fewer flaws, more efficient production ramps as well as enhanced long-term stability. These minute tapers provide the over-sized quality and cost control returns in high-volume silicone molding.
