Three most significant variables in silicone seal design are compression set, squeeze, and fill gland, as these directly determine the way the seal is going to deform, recuperate and behave with time. Numerous sealing failures are not due to an inadequate selection of the silicone material used, but to improper balancing of these three design variables with one another and with the actual geometry of the groove.
One of the invalid assumptions that design teams share is that the greater the compression, the greater the sealing. Practically, over squeeze with improper gland design, and low recovery tends to decrease seal life and lower reliability. To achieve reliability in silicone seal performance, compression set resistance, squeeze, and gland fill must be balanced to ensure that contact is maintained by the seal without overstressed assembly or other problems.
Compression set, squeeze and gland fill are not technical terms in isolation, they are interrelated design considerations which make or break the reliability design of a silicone seal in the real working conditions.
Why Compression Set, Squeeze, and Gland Fill Must Be Designed Together

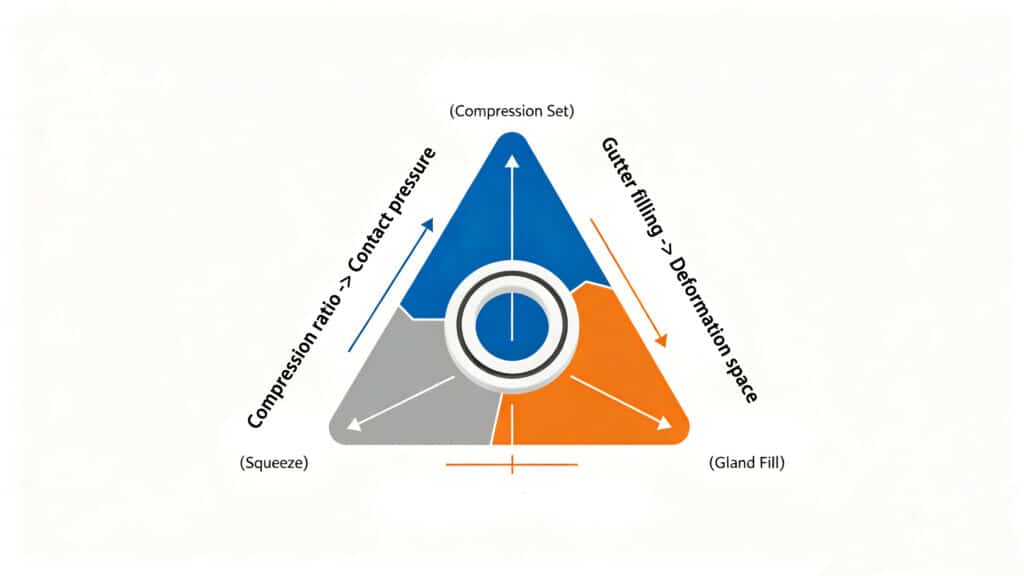

These three variables are not supposed to be assessed separately since the behavior of each one directly affects the behavior of the other until the entire life of the seal. When designing custom silicone seals, these three factors must be optimized together to ensure reliable long-term performance.
Silicone seals behavior under compression is dependent on the physical limitation of the groove as well as the intrinsic characteristics of the material used. First sealed performance during assembly is just half of the story. The real long-term sealing reliability is replaced by applicability of seal in days, weeks and years with a constant load, cycling temperatures and exposures to the environment. Ineffective balance between squeeze and gland fill may hasten irreversible deformation, loss of sealing forces and risk of higher leakage.
Controlled deformation is the beginning of long-term sealing reliability and not aggressive loading. By combining these factors in one design, engineers can have predictable performance and decrease field failures.
| Design Factor | Primary Function | Long-Term Risk If Mismanaged |
| Compression set | Indicates ability to recover after load | Loss of sealing force over time |
| Squeeze | Creates sealing contact pressure | Overstress or insufficient sealing |
| Gland fill | Controls space available for seal deformation | Distortion, instability, or assembly issues |
Start with What Compression Set Really Means in Practical Seal Design

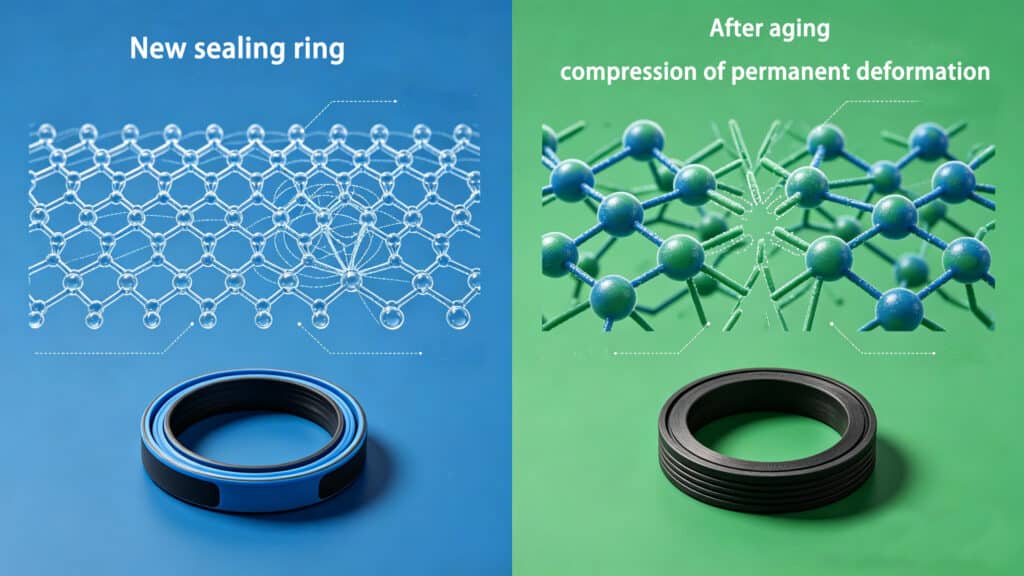

Compression set in silicone seals is a form of permanent deformation that will remain when the material has been compressed over a long period and then released. Proper silicone material selection with strong compression set resistance is essential to maintaining sealing force over extended service periods.
In real-life engineering usage, it is a gauge of the ability of a silicone seal to restore its original shape and be able to provide sealing forces when compressive load is discontinued or lowered.
Initial softness or high initial sealing pressure does not necessarily imply good long-term recovery. Although seals may appear hard immediately after assembling, ineffective resistance on compression set may lead to the gradual loss of the ability by the seal to push against the mating surfaces. It is particularly critical in long-duration applications in which the seal has to be pressed during several months or years, and the seal is under pressure.
Compression set will be accelerated in a high temperature environment, which may make material choice and design compromise all the more vital. The same seal can be acceptable at the project stage but still fail to perform in the long term due to its failure to recover.
| Compression Set Consideration | Practical Design Meaning |
| Lower compression set tendency | Better ability to retain sealing force over time |
| Higher compression set tendency | Higher risk of permanent deformation |
| Long-term static loading | Increases importance of recovery behavior |
| Elevated temperature exposure | Can accelerate compression loss |
| Poor material selection | Can weaken long-term sealing stability |
Squeeze Determines Sealing Force — But More Is Not Always Better

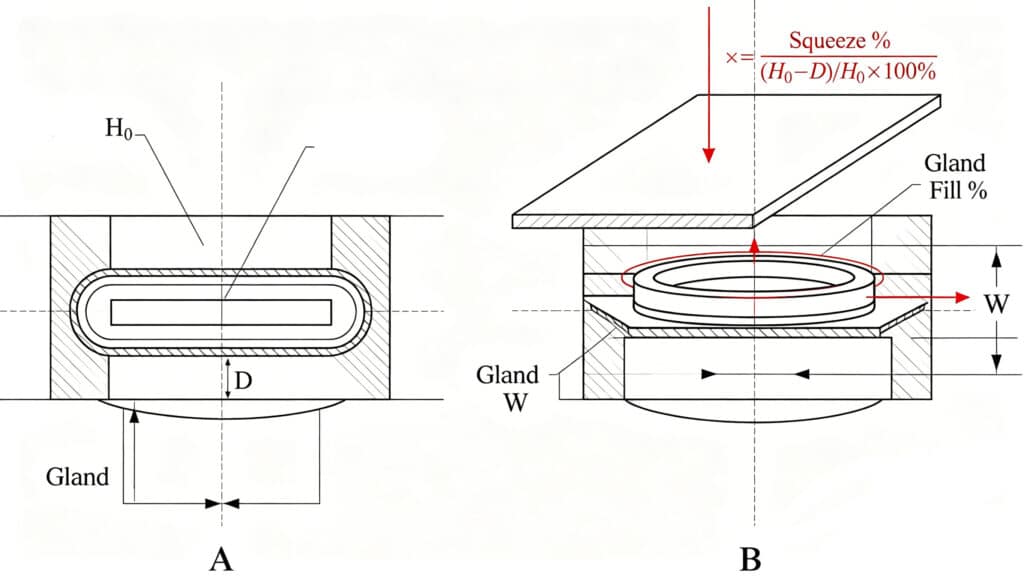

The proportion of seal cross-section that is flattened when the seal is placed in the groove is known as squeeze in silicone seal design. Achieving the right squeeze consistently requires proven silicone compression molding expertise and precise process control. It has a direct effect on contact pressure between the seal and the contacting surfaces which is the main determinant of starting sealing performance.
With inadequate squeeze, poor contact pressure can occur, which exposes an increased risk of leakage potential, particularly under pressure differentials or vibration. Conversely, too much squeeze may hasten the compression set, inhibit long-term recovery, and impose unwarranted stress concentrations that decrease the seal life.
Appropriate squeeze levels are related to hardness of silicone (durometry) and shape of an individual seal, as well as the requirements of the process itself, such as range of temperatures, and exposure to various media. Controlled squeeze is aimed at giving consistent sealing without excessive stress to the material.
| Squeeze Condition | Likely Performance Outcome |
| Too low | Weak contact pressure and leakage risk |
| Properly controlled | Stable sealing and balanced recovery |
| Too high | Higher stress, faster permanent deformation |
| Uneven squeeze | Localized performance instability |
| Unvalidated squeeze under assembly tolerance | Inconsistent field results |
With complex projects of custom silicone seal development support, it is common practice to consider squeeze targets early in the project to prevent the downstream problems during prototyping and manufacturing.
Gland Fill Controls How the Seal Deforms Inside the Groove
Gland fill is a proportionate measure of the volume of the groove fill that is occupied by the un compressible silicone seal. Accurate groove geometry from professional mold manufacturing ensures proper gland fill and prevents distortion or instability under real operating conditions. It establishes the extent to which the seal is able to squeeze outward in the future.

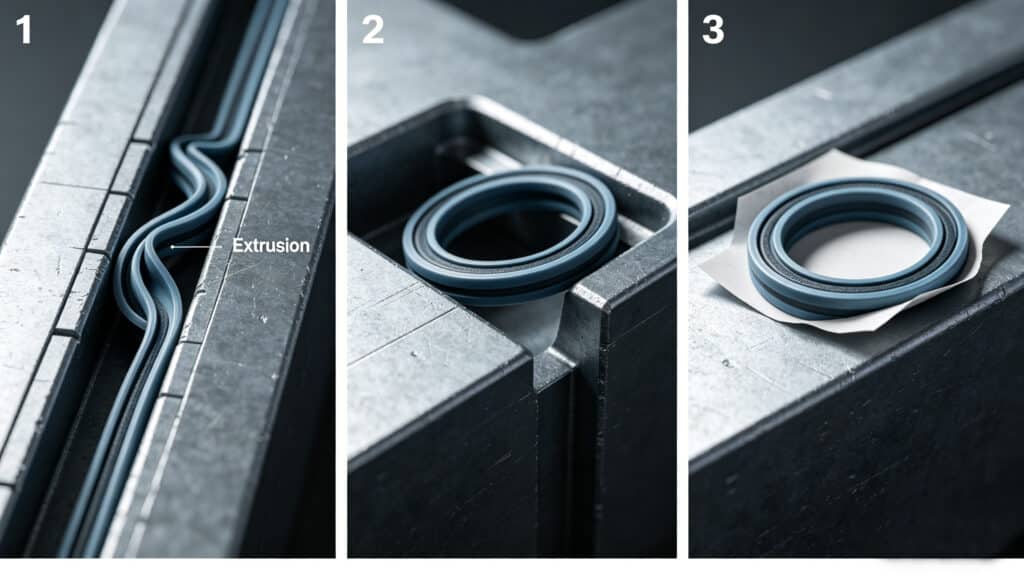

High gland fill percentage may result in distortion, overpacking or unstable compression behavior since the material has no place to flow as the assembly occurs or when subjected to heat. On the other hand, gland fill can be very low and this would result in poor support of the seal, which will result in poor consistency and poor sealing.
Gland fill should never be considered in isolation of thermal expansion properties, dimensional tolerance and overall geometry of the seal. Beneficial groove construction enhances effective deformation as opposed to containing the seal.
| Gland Fill Condition | Likely Design Risk |
| Too high | Distortion, overcompression, unstable behavior |
| Properly controlled | Stable deformation and better fit |
| Too low | Weak support and inconsistent sealing |
| Ignored tolerance stack-up | Unpredictable real-world compression |
| Ignored thermal expansion | Greater risk under temperature cycling |
How These Three Factors Interact in Real Silicone Seal Applications
The compression set, squeeze and gland fill are in fact continuously affected by each other in real service. Over squeeze, e.g., tends to deteriorate the performance of long-term recovery by creating internal stress in silicone. A full gland fill may add to the adverse impact of such excessive compression, or less material will have room to restart.
A combination of low compression set resistance and aggressive squeeze levels leads to an extremely rapid loss of sealing force in the seal, much faster than anticipated. That is why seasoned designers consider the deformation system as a whole but not as a sum of separate parameters as independent theoretical values.
| Design Combination | Potential Real-World Result |
| High squeeze + high gland fill | Overstress and early compression loss |
| Low squeeze + low gland fill | Weak sealing and unstable positioning |
| Proper squeeze + balanced gland fill | Better long-term stability |
| Weak recovery + aggressive compression | Faster loss of sealing force |
| Stable material + poor groove control | Inconsistent assembly performance |
Material, Geometry, and Groove Design All Influence the Outcome
Isolating performance cannot be achieved by material properties. Strong quality control in silicone manufacturing — including dimensional consistency, tolerance management, and surface quality — is critical to achieving predictable squeeze and gland fill in production. The stiffness of the silicone results in the seal reacting to a specified level of squeeze more easily but can have increased compression set at extended loads.
The shape of the cross section influences the deformation pattern and area of contact whose depth of the groove has a direct influence on the amount of squeeze actually obtained. The width of groove determines the gland fill and space of expansion. The actual assembled condition can additionally be changed by the tolerance stack-up which tends to move the final squeeze and fill percentages, not in line with nominal values.
The quality of surface of the seal and mating parts also contributes to the consistency of sealing and stability of contact over time. Due to these reasons, the seal and its groove must be designed as a system.
| Design Element | Influence on Seal Behavior |
| Material hardness | Changes deformation response and sealing force |
| Cross-section geometry | Affects contact area and compression pattern |
| Groove depth | Controls actual squeeze |
| Groove width | Influences gland fill and expansion space |
| Tolerance stack-up | Changes real assembled condition |
| Surface quality | Affects sealing consistency and contact stability |
Common Design Mistakes Related to Compression Set, Squeeze, and Gland Fill
As a matter of fact, even seasoned teams can fall into ready pitfalls when specifying silicone seals.
There are typical fallacies such as believing that the additional squeeze is beneficial to sealing performance, the neglect in considering the behavior of long-term recoveries when choosing materials, and considering gland fill a trivial groove detail instead of a design parameter. When the design is done based on nominal size and the tolerance stack-up is not reviewed, very often the design may produce different results when it is implemented in production. Making simply a prototype of the product and feeling it is usually inadequate to detect long term performance risks like in heat or in the environment. Lastly, considering the seal as a single housing rather than a whole sealing system may introduce hidden failure modes.
