Production of custom silicone parts is problematic but most of them can be predicted and avoided. Issues tend to be related to interactions between part design, material behavior, tooling, and processing control and not isolated factory errors. Most purchasers think that defects are primarily due to operator error, but that repeated faults may have their root in earlier engineering or process configuration. Majority of the silicone manufacturing issues can be mitigated or eliminated by making superior design choices, control of processes and discipline in manufacturing.
Why Production Challenges Occur in Silicone Manufacturing
The production of silicone poses special challenges as this material does not respond in the same way as rigid plastics or metals. Its viscoelastic characteristic, complicated cure chemistry and sensitivity to temperature, pressure and time generate numerous variables that interact during the process. Even a small alteration in design or process settings, can result in a rapid instability in production.
| Challenge Source | Typical Risk | Potential Result |
| Design Issues | Poor manufacturability | Defects or rework |
| Material Selection | Property mismatch | Performance failures |
| Tooling Problems | Flash, dimensional variation | Quality instability |
| Process Control Gaps | Inconsistent curing | Batch variation |
| Quality Oversight | Defect escape | Field failures |
The knowledge of these interactions assists engineers and sourcing teams to foresee issues rather than respond to them after they occur.
Challenge 1 — Flash and Excess Material
The most common silicone part bugs are flash. It is manifested as thin excess material along parting lines or in regions where the halves of the mould meet, both aesthetics and functionality in precision parts.
Flash occurs when molten or uncured silicone leaks out of the cavity due to pressure. Typical causes are incorrect parting line alignment, tool wear, excessive material loading, or not setting correct molding parameters of pressure, temperature, or cure time.
| Cause | Problem Created | Potential Solution |
| Tool mismatch | Flash formation | Tool correction |
| Overloading material | Overflow | Material control |
| Process instability | Inconsistent flash | Parameter optimization |
| Mold wear | Repeated defects | Tool maintenance |
Skilled producers solve flash by accurate tool placement, minimized shot weights, and routine preventive maintenance other than by post-mold trimming.
With proper design, custom silicone components can be manufactured with clean edges and uniform dimensions due to early identification of flash points during design for manufacturability (DFM) reviews.
Challenge 2 — Dimensional Tolerance Problems
Teams that are new to silicone are often caught unawares by dimensional tolerance issues since the material shrinks during its curing. In contrast to thermoplastics, silicone has large and at times unpredictable shrinkage (generally 0.5-3% depending on formulation and process), which has a direct impact on final part geometry.
Variability in tolerances occurs due to the shrinkage differences, variation in the temperature of the mould, lot variation in materials and poor tolerance planning in design.
| Root Cause | Typical Issue | Solution Direction |
| Shrinkage variation | Dimensional drift | Material/process adjustment |
| Weak tolerance planning | Poor fit | DFM optimization |
| Mold inconsistency | Repeatability issues | Tool refinement |
| Process variation | Batch instability | Process control |
Tolerance problems are usually initiated during design, rather than during inspection. Realistic tolerances are established by successful projects, using the particular silicone grade, geometry and molding procedure (compression vs. liquid silicone rubber injection) instead of using generic metal or plastic standards.
Challenge 3 — Air Traps, Voids and Incomplete Filling
Air traps, voids, and incomplete filling are common to silicone flow paths and venting that are not optimized. These flaws manifest in the form of stuck bubbles, internal cavities, or a section of the component that is not present, weakening not only the mechanical performance but also aesthetic appeal.
| Defect | Common Cause | Corrective Action |
| Air Traps | Poor venting | Improve vent design |
| Voids | Process imbalance | Cure optimization |
| Incomplete Fill | Flow issues | Gate/process review |
| Short Shots | Material delivery issues | Tool/process adjustment |
The successful solutions are strategic positioning of vent, adequate positioning of gate, balanced flow analysis and controlled injection or compression parameters. The consideration of tool venting and flow path should be done during the design of the mold and not when defects have been realized.
Challenge 4 — Material Performance Problems
After parts are in the field, material performance issues become evident, providing expensive warranty problems. Typical ones are excessive compression set, undesirable variation of hardness, chemical incompatibility, and early heat aging.
| Material Problem | Likely Cause | Solution |
| Premature aging | Wrong formulation | Material review |
| Hardness inconsistency | Material/process variation | Controls improvement |
| Compression failure | Wrong material choice | Reformulation |
| Chemical degradation | Compatibility mismatch | Application-specific material selection |
The art of choosing the appropriate silicone formulation, be it high-consistency rubber (HCR) or liquid silicone rubber (LSR) involves critical knowledge of the ultimate environment, such as temperature variations, exposure to chemicals, and mechanical forces.
Challenge 5 — Surface Defects and Cosmetic Issues
Cosmetic defects and surface flaws may render functionally acceptable components to be rejected. These are flow lines, knit lines, surface marks, uneven texture, printing defects and contamination.
| Cosmetic Issue | Common Cause | Prevention Strategy |
| Surface marks | Tool or process issue | Process optimization |
| Texture inconsistency | Mold wear | Tool maintenance |
| Print defects | Secondary process issues | Better controls |
| Contamination | Handling environment | Clean production controls |
Some cosmetic issues are purely cosmetic but others are functional as they can interfere with sealing surfaces, bonding areas or food-grade/contact applications. Prevention is based upon controlled environments, appropriate treatment of the surfaces of the molds, and rigorous secondary processing.

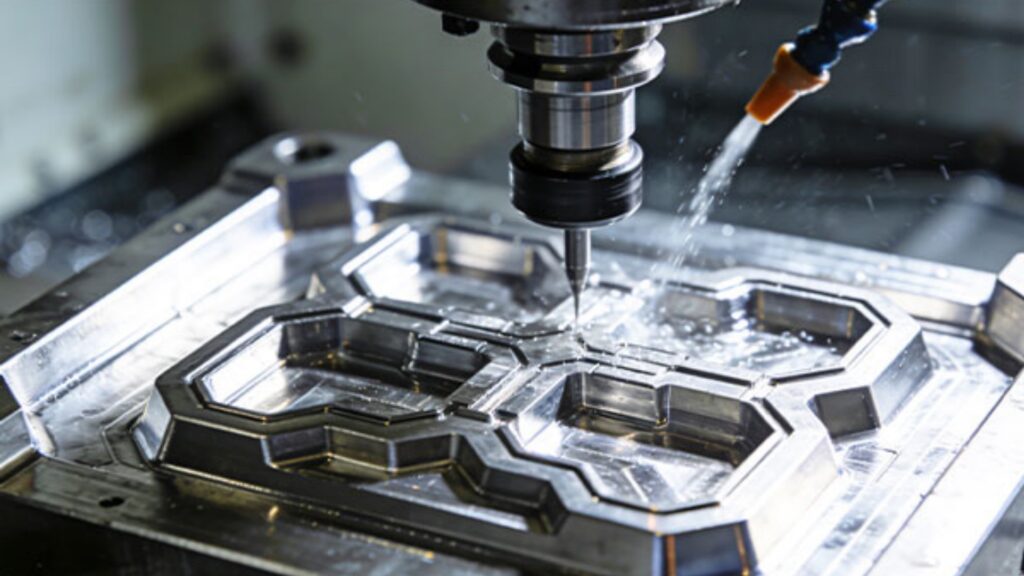

Challenge 6 — Tooling-Related Production Problems
Quality issues are many production defects that can be classified as tooling issues. Long term stability in production directly depends on tool wear, bad design of molds, ineffective venting and poor design of parting lines.
| Tooling Issue | Production Impact | Typical Mitigation |
| Mold wear | Quality drift | Scheduled maintenance |
| Poor venting | Defect formation | Vent redesign |
| Weak parting line design | Flash risk | Tool refinement |
| Tool imbalance | Inconsistent output | Balanced cavity design |
A good quality tooling investment will be self-paying in terms of reduced downtime, scrap, and constant production output across the production runs.
Root Cause Analysis: Solving Problems Systematically
Silicone manufacturing needs systematic root cause analysis rather than symptom treatment to solve problems effectively. Solving problems quickly is a common fallacy that will result in more problems.
| Problem Area | Root Cause Question |
| Design | Was manufacturability considered? |
| Material | Is formulation correct? |
| Tooling | Is mold causing instability? |
| Process | Are parameters controlled? |
| Quality | Is variation being detected early? |
Structured methods like 5-Why analysis, fishbone diagrams, and process capability studies can assist teams to shift towards preventive engineering instead of reactive firefighting.
Preventive Strategies to Reduce Production Challenges
Prevention is the surest method of reducing custom silicone production issues because disciplined engineering and process control are the best method to prevent.
Some of the main tools are full reviews of DFMs, use of prototypes in production-like environments, material qualification testing, extensive process documentation, statistical process control (SPC), and preventive tooling maintenance programs.
| Prevention Strategy | Risk Reduced |
| DFM review | Design-related defects |
| Prototyping | Functional failures |
| Process controls | Variation |
| Tool maintenance | Tool-driven defects |
| Material validation | Performance issues |
Common Mistakes That Increase Silicone Production Problems
A number of common errors increase difficulties in production of custom silicone parts:
- Taking defects as single operator error rather than systemic.
- Focusing on lowest unit cost, rather than process stability and consistency.
- Omitting or rushing DFM reviews prior to tooling commitment.
- Successful prototypes are thought to automatically yield stable mass production.
- Disregarding process repeatability statistics and statistical variation.
- Changing parameters of materials or processes without complete validation.
Conclusion — Most Production Problems Are Engineering Problems First
The problems of silicone production can be dealt with in a systematic way. Production that is reliable relies on avoiding root causes as opposed to merely responding to defects. Quality risks can be mitigated through good engineering and process discipline before issues manifest themselves in the shop floor.
Numerous custom silicone manufacturing issues do not occur as isolated manufacturing failures but are foreseeable engineering and processing difficulties which can frequently be avoided by more careful planning and control. Those teams that take time to design validate, select materials, and optimize processes are always getting great yields, higher repeatability, and lower overall cost of ownership.
